Compare UniFi switches

The switch connects everything wired in the network: computers, access points, cameras and printers. Every UniFi switch is managed, but they differ a lot in ports, PoE and features. Filter for the models that fit your network.

Compact: Small switches for a desk, a wall or a small cabinet, from the Flex Mini to compact PoE switches for a few access points and cameras.

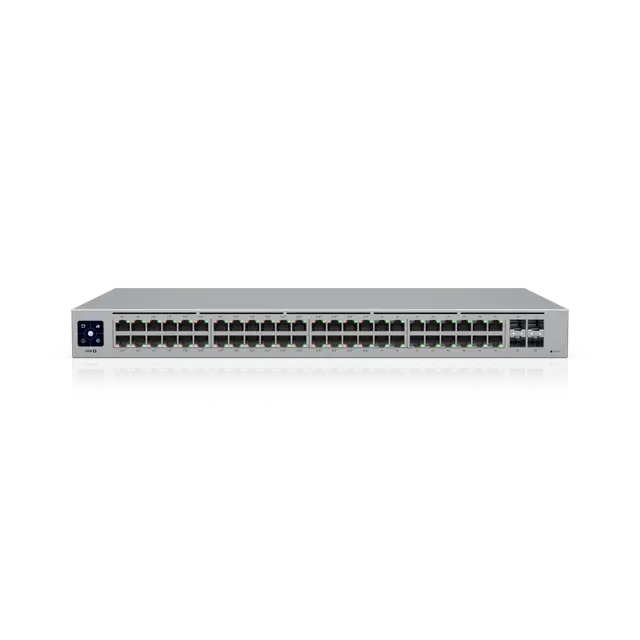

Standard: Rack-mounted gigabit switches for offices that need many ports at a lower price.

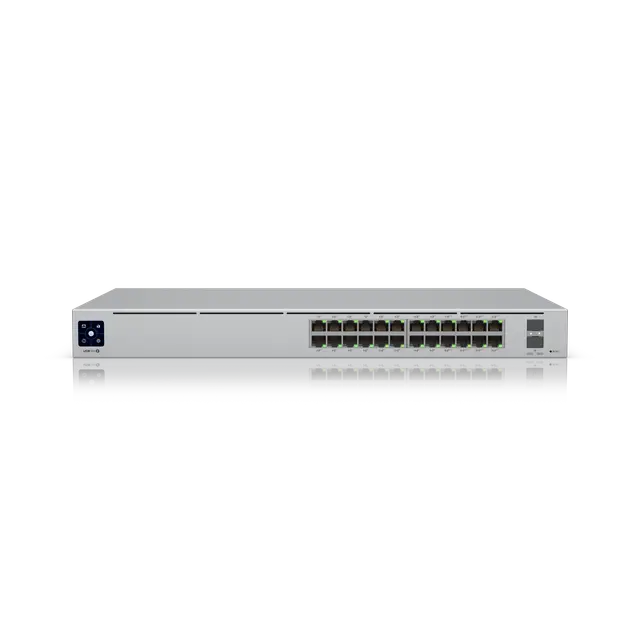

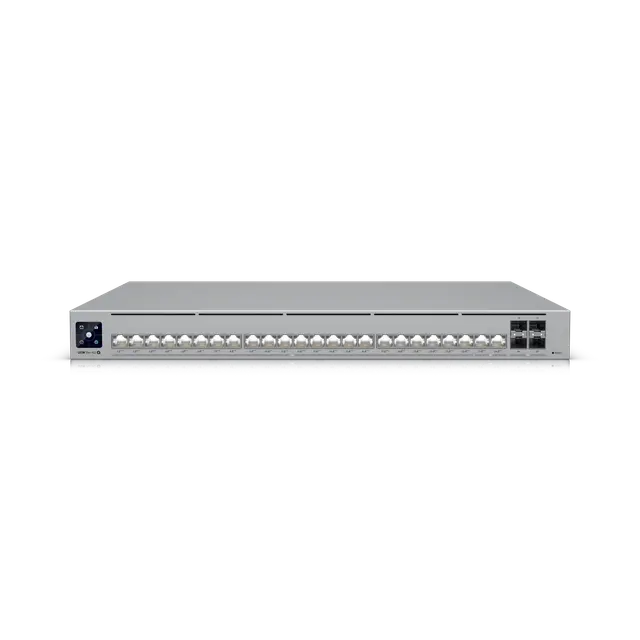

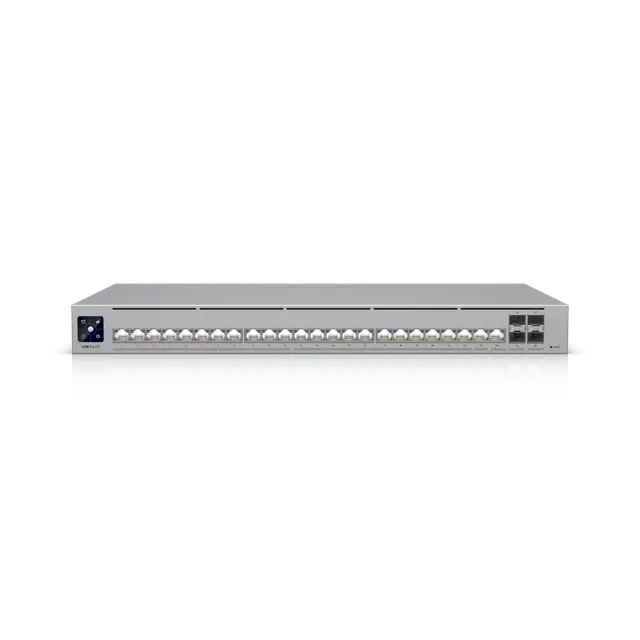

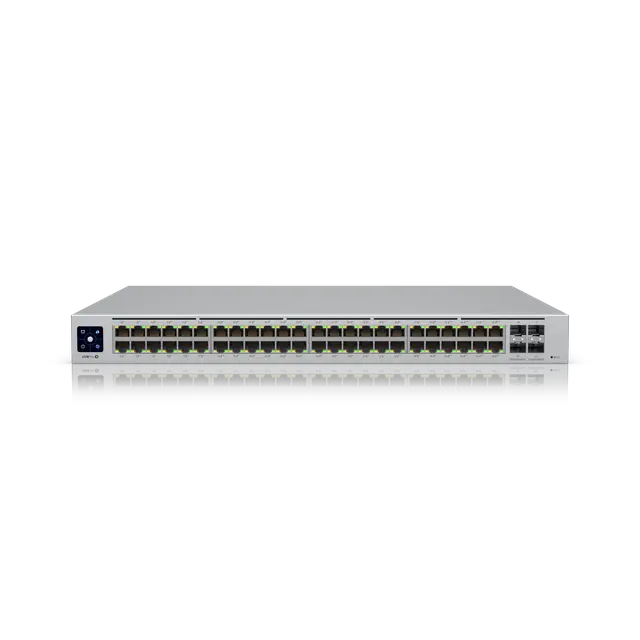

Pro: Rack-mounted Layer 3 switches with 10G uplinks and stronger PoE, for offices with higher demands.

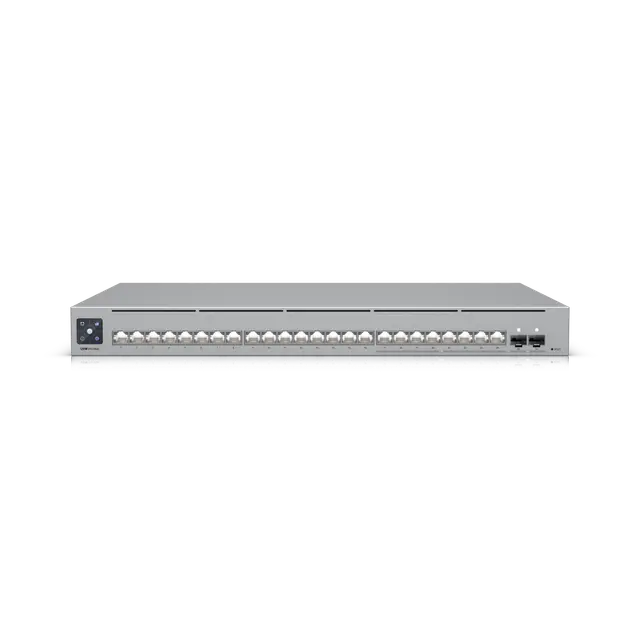

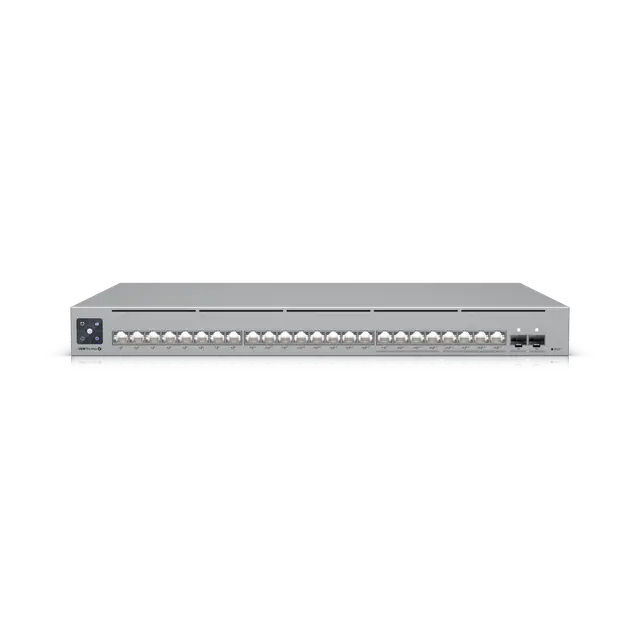

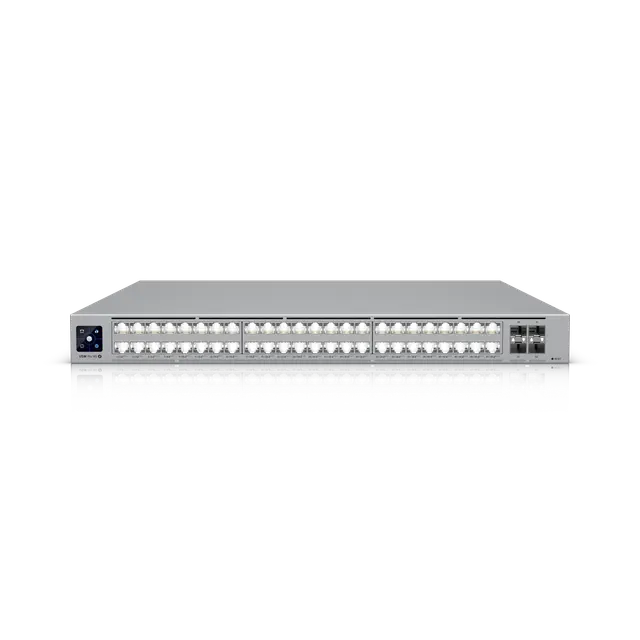

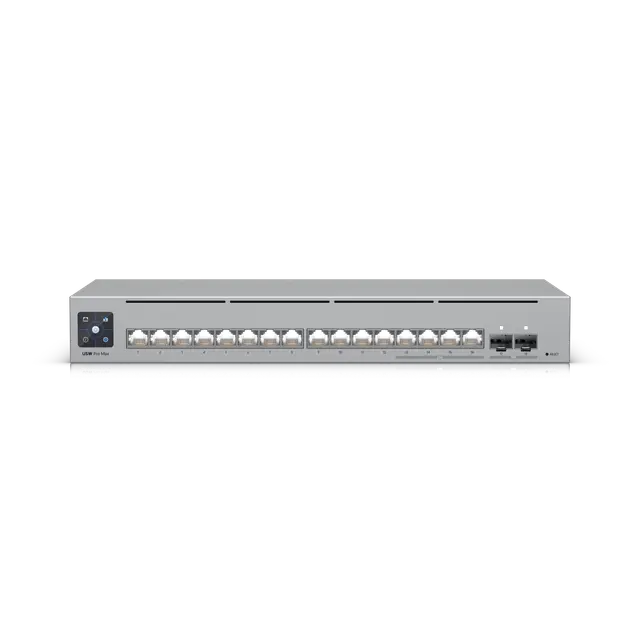

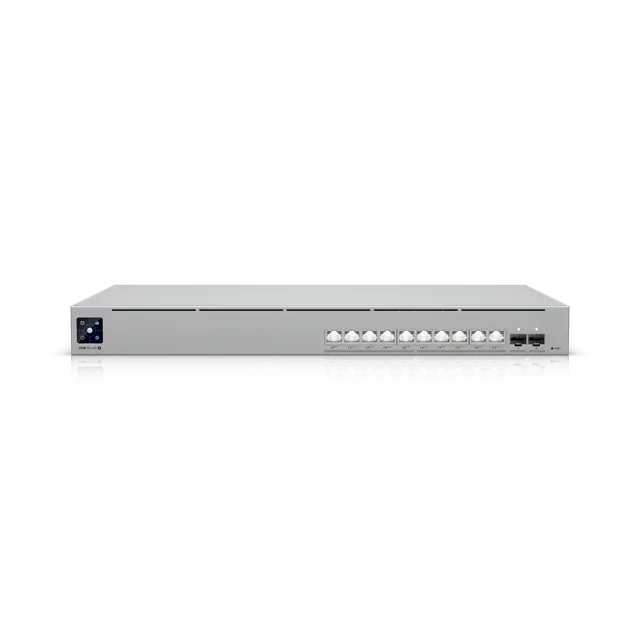

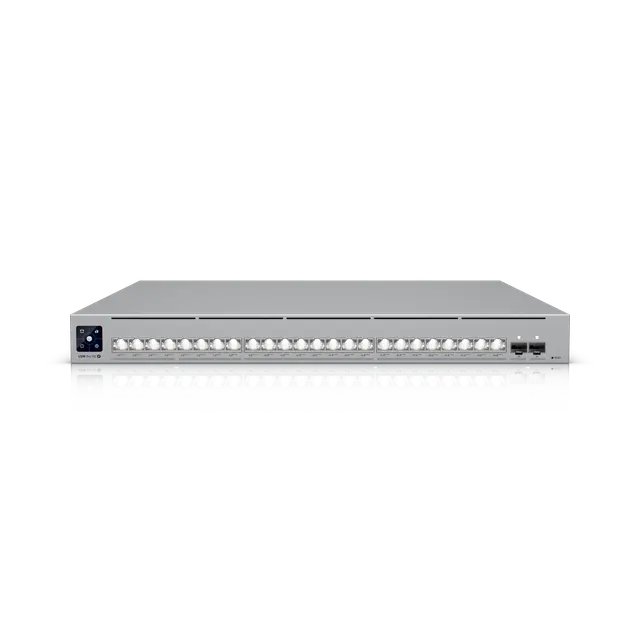

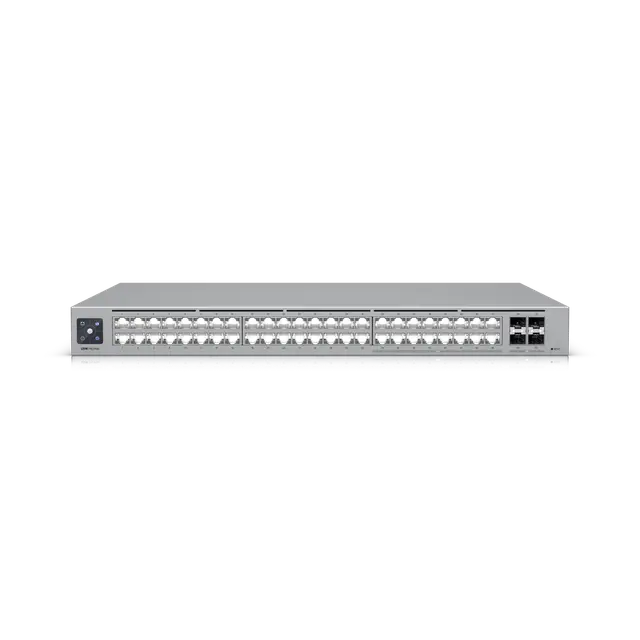

Pro Max and XG: The newer generation with 2.5 and 10 GbE, Etherlighting and plenty of PoE, for Wi-Fi 7 and fast networks.

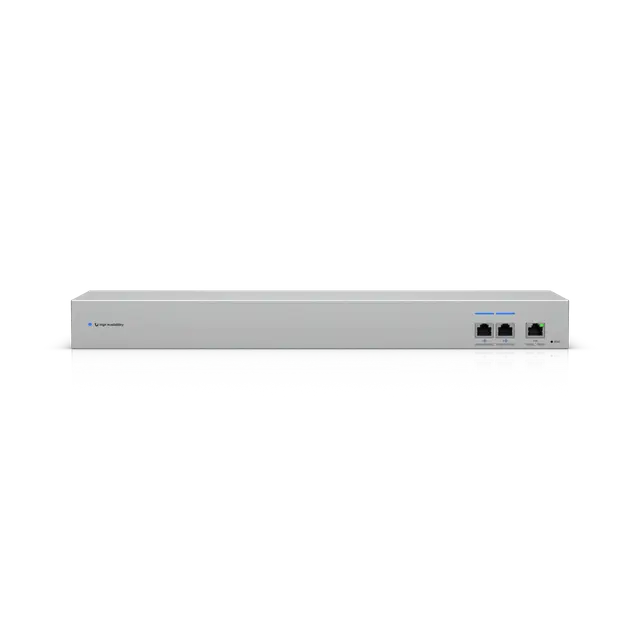

WAN: Small rack switches that share the internet connection between several gateways, for networks that must survive a gateway going down.
Aggregation: Fibre-only switches that tie other switches together in larger networks.
Enterprise: Ubiquiti’s largest switches, with hot-swappable power supplies and fans, for large offices, audio-visual installations and server rooms.

* From a community source, such as McCann Tech’s comparisons, not from Ubiquiti.
Prices in euros excluding VAT from Ubiquiti’s EU store, fetched 2026-10-16. The store may add a temporary surcharge for memory costs of about 10%.
“Not specified” means that neither Ubiquiti nor the sources we use state the value. “–” means it does not apply to the product.

Choosing a UniFi switch: managed, PoE and loop protection

Feature	Switch Flex MiniCompact	Switch Flex Mini 2.5GCompact	Switch FlexCompact	Switch UltraCompact	Switch Lite 8 PoECompact	Switch Flex 2.5GCompact	Switch Flex 2.5G PoECompact	Switch Lite 16 PoECompact	Switch Industrial DIN 8Compact	Switch Pro 8 PoECompact	Switch Flex XGCompact	Switch Industrial DIN 8 PoECompact	Switch Enterprise 8 PoE (Vintage)Compact	Switch Pro XG 8 PoECompact	Switch Industrial DIN 2.5G 8 PoECompact	Switch 24Standard	Switch 16 PoEStandard	Switch 24 PoEStandard	Switch 48Standard	Switch 48 PoEStandard	Switch Pro 24 PoEPro	UPS PoE Switch Mission CriticalPro	Switch Pro 48 PoEPro	Switch Pro Max 16Pro Max and XG	Switch Pro Max 16 PoEPro Max and XG	Switch Pro Max 24Pro Max and XG	Switch Pro HD 24Pro Max and XG	Switch Pro Max 48Pro Max and XG	Switch Pro XG 10 PoEPro Max and XG	Switch Pro Max 24 PoEPro Max and XG	Switch Pro HD 24 PoEPro Max and XG	Switch Pro XG 24Pro Max and XG	Switch Pro Max 48 PoEPro Max and XG	Switch Pro XG 24 PoEPro Max and XG	Switch Pro XG 48Pro Max and XG	Switch Pro XG 48 PoEPro Max and XG	UniFi WAN SwitchWAN	UniFi WAN Switch RJ45WAN	Switch AggregationAggregation	Switch Hi-Capacity AggregationAggregation	Switch Pro XG AggregationAggregation	Switch Enterprise Campus AggregationAggregation	Switch Enterprise Campus 24SEnterprise	Switch Enterprise Campus 24 PoEEnterprise	Switch Enterprise Audio/Video FiberEnterprise	Switch Enterprise Campus 24S PoEEnterprise	Switch Enterprise Campus 48SEnterprise	Switch Enterprise Campus 48 PoEEnterprise	Switch Enterprise Audio/Video XG 24 PoEEnterprise	Switch Enterprise Campus 48S PoEEnterprise	Enterprise Campus Switch CoreEnterprise
Overview
Price (excl. VAT)	€26 3-pack: €75 5-pack: €125	€45	€89 3-pack: €255	Without adapter: €90 With 60 W adapter: €129 With 210 W adapter: €185	€99	€145	€179	€179	€250	€269	€270	€295	€430	€449	Not specified	€200	€269	€340	€359	€530	€629	€925	€989	€250	€359	€405	€539	€599	€629	€739	€899	€989	€1,199	€1,619	€1,799	€2,249	€225	€225	€240	€809	€2,249	€3,599	€1,799	€2,249	€2,699	€2,699	€2,699	€3,149	€3,599	€3,599	€4,499
Function level	Basic	Loop protection	Basic	Loop protection	Fully managed	Loop protection	Loop protection	Fully managed	Fully managed	Layer 3	Fully managed	Fully managed	Layer 3	Layer 3	Not specified	Fully managed	Fully managed	Fully managed	Fully managed	Fully managed	Layer 3	Fully managed	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	–	–	Fully managed	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3	Layer 3
Ports and PoE
Ports	5 × 1 Gbps RJ45	5 × 2.5 Gbps RJ45	4 × 1 Gbps RJ45 (PoE+) 1 × 1 Gbps RJ45 (PoE++ input)	7 × 1 Gbps RJ45 (PoE+) 1 × 1 Gbps RJ45 (PoE++ input)	4 × 1 Gbps RJ45 (PoE+) 4 × 1 Gbps RJ45	8 × 2.5 Gbps RJ45 1 × 10 Gbps RJ45 (combo port) 1 × 10 Gbps SFP+ (combo port)	8 × 2.5 Gbps RJ45 (PoE++) 1 × 10 Gbps RJ45 (PoE+++ input, combo port) 1 × 10 Gbps SFP+ (combo port)	8 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45	8 × 1 Gbps RJ45 2 × 1 Gbps SFP	6 × 1 Gbps RJ45 (PoE+) 2 × 1 Gbps RJ45 (PoE++) 2 × 10 Gbps SFP+	1 × 1 Gbps RJ45 4 × 10 Gbps RJ45	8 × 1 Gbps RJ45 (PoE++) 2 × 1 Gbps SFP	8 × 2.5 Gbps RJ45 (PoE+) 2 × 10 Gbps SFP+	8 × 10 Gbps RJ45 (PoE++) 2 × 10 Gbps SFP+	Not specified	24 × 1 Gbps RJ45 2 × 1 Gbps SFP	8 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 2 × 1 Gbps SFP	16 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 2 × 1 Gbps SFP	48 × 1 Gbps RJ45 4 × 1 Gbps SFP	32 × 1 Gbps RJ45 (PoE+) 16 × 1 Gbps RJ45 4 × 1 Gbps SFP	16 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 (PoE++) 2 × 10 Gbps SFP+	4 × 1 Gbps RJ45 (PoE+) 4 × 1 Gbps RJ45 (PoE++) 1 × 1 Gbps RJ45	40 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 (PoE++) 4 × 10 Gbps SFP+	12 × 1 Gbps RJ45 4 × 2.5 Gbps RJ45 2 × 10 Gbps SFP+	12 × 1 Gbps RJ45 (PoE+) 4 × 2.5 Gbps RJ45 (PoE++) 2 × 10 Gbps SFP+	16 × 1 Gbps RJ45 8 × 2.5 Gbps RJ45 2 × 10 Gbps SFP+	22 × 2.5 Gbps RJ45 2 × 10 Gbps RJ45 4 × 10 Gbps SFP+	32 × 1 Gbps RJ45 16 × 2.5 Gbps RJ45 4 × 10 Gbps SFP+	10 × 10 Gbps RJ45 (PoE+++) 2 × 10 Gbps SFP+	8 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 (PoE++) 8 × 2.5 Gbps RJ45 (PoE++) 2 × 10 Gbps SFP+	22 × 2.5 Gbps RJ45 (PoE++) 2 × 10 Gbps RJ45 (PoE++) 4 × 10 Gbps SFP+	8 × 2.5 Gbps RJ45 16 × 10 Gbps RJ45 2 × 25 Gbps SFP28	24 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 (PoE++) 8 × 2.5 Gbps RJ45 (PoE+) 8 × 2.5 Gbps RJ45 (PoE++) 4 × 10 Gbps SFP+	8 × 2.5 Gbps RJ45 (PoE+++) 16 × 10 Gbps RJ45 (PoE+++) 2 × 25 Gbps SFP28	16 × 2.5 Gbps RJ45 32 × 10 Gbps RJ45 4 × 25 Gbps SFP28	16 × 2.5 Gbps RJ45 (PoE+++) 32 × 10 Gbps RJ45 (PoE+++) 4 × 25 Gbps SFP28	1 × 1 Gbps RJ45 3 × 10 Gbps SFP+	1 × 1 Gbps RJ45 3 × 10 Gbps RJ45	8 × 10 Gbps SFP+	28 × 10 Gbps SFP+ 4 × 25 Gbps SFP28	32 × 25 Gbps SFP28	48 × 25 Gbps SFP28 6 × 100 Gbps QSFP28	1 × 1 Gbps RJ45 (management port) 8 × 2.5 Gbps RJ45 16 × 10 Gbps RJ45 4 × 25 Gbps SFP28 2 × 100 Gbps QSFP28 (stacking only)	8 × 2.5 Gbps RJ45 (PoE+++) 16 × 10 Gbps RJ45 (PoE+++) 2 × 25 Gbps SFP28	1 × 1 Gbps RJ45 20 × 10 Gbps SFP+ 2 × 100 Gbps QSFP28	1 × 1 Gbps RJ45 (management port) 8 × 2.5 Gbps RJ45 (PoE+++) 16 × 10 Gbps RJ45 (PoE+++) 4 × 25 Gbps SFP28 2 × 100 Gbps QSFP28 (stacking only)	1 × 1 Gbps RJ45 (management port) 32 × 2.5 Gbps RJ45 16 × 10 Gbps RJ45 4 × 25 Gbps SFP28 2 × 100 Gbps QSFP28 (stacking only)	16 × 2.5 Gbps RJ45 (PoE+++) 32 × 10 Gbps RJ45 (PoE+++) 4 × 25 Gbps SFP28	1 × 1 Gbps RJ45 24 × 10 Gbps RJ45 (PoE+++) 4 × 100 Gbps QSFP28	1 × 1 Gbps RJ45 (management port) 32 × 2.5 Gbps RJ45 (PoE+++) 16 × 10 Gbps RJ45 (PoE+++) 4 × 25 Gbps SFP28 2 × 100 Gbps QSFP28 (stacking only)	1 × 1 Gbps RJ45 (management port) 32 × 100 Gbps QSFP28
Number of ports	5	5	5	8	8	9	9	16	10	10	5	10	10	10	Not specified	26	18	26	52	52	26	9	52	18	18	26	28	52	12	26	28	26	52	26	52	52	4	4	8	32	32	54	28	26	23	28	52	52	29	52	32
PoE ports	–	–	4	7	4	–	8	8	–	8	–	8	8	8	Not specified	–	8	16	–	32	24	8	48	–	16	–	–	–	10	24	24	–	48	24	–	48	–	–	–	–	–	–	–	24	–	24	–	48	24	48	–
Strongest PoE	–	–	PoE+	PoE+	PoE+	–	PoE++	PoE+	–	PoE++	–	PoE++	PoE+	PoE++	Not specified	–	PoE+	PoE+	–	PoE+	PoE++	PoE++	PoE++	–	PoE++	–	–	–	PoE+++	PoE++	PoE++	–	PoE++	PoE+++	–	PoE+++	–	–	–	–	–	–	–	PoE+++	–	PoE+++	–	PoE+++	PoE+++	PoE+++	–
PoE budget	–	–	46 W	202 W	52 W	–	196 W	45 W	–	120 W	–	480 W	120 W	155 W	Not specified	–	42 W	95 W	–	195 W	400 W	120 W	600 W	–	180 W	–	–	–	400 W	400 W	600 W	–	720 W	720 W	–	1,080 W	–	–	–	–	–	–	–	1,050 W	–	1,050 W	–	2,150 W	2,150 W	2,150 W	–
Performance
Switching capacity	10 Gbps	25 Gbps	10 Gbps	16 Gbps	16 Gbps	60 Gbps	60 Gbps	32 Gbps	20 Gbps	56 Gbps	82 Gbps	20 Gbps	80 Gbps	200 Gbps	Not specified	52 Gbps	36 Gbps	52 Gbps	104 Gbps	104 Gbps	88 Gbps	18 Gbps	176 Gbps	84 Gbps	84 Gbps	112 Gbps	230 Gbps	224 Gbps	240 Gbps	112 Gbps	230 Gbps	460 Gbps	224 Gbps	460 Gbps	920 Gbps	920 Gbps	20 Gbps	20 Gbps	160 Gbps	760 Gbps	1,600 Gbps	3,600 Gbps	460 Gbps	460 Gbps	800 Gbps	460 Gbps	680 Gbps	920 Gbps	1,280 Gbps	680 Gbps	6,400 Gbps
Forwarding rate	7 Mpps	19 Mpps	7 Mpps	12 Mpps	12 Mpps	45 Mpps	45 Mpps	24 Mpps	14.88 Mpps	42 Mpps	61 Mpps	14.88 Mpps	60 Mpps	149 Mpps	Not specified	39 Mpps	27 Mpps	39 Mpps	77 Mpps	77 Mpps	65 Mpps	13 Mpps	131 Mpps	62 Mpps	62 Mpps	83 Mpps	171.12 Mpps	167 Mpps	179 Mpps	83 Mpps	171 Mpps	342 Mpps	167 Mpps	342 Mpps	684 Mpps	684 Mpps	15 Mpps	15 Mpps	119 Mpps	565 Mpps	1,200 Mpps	2,400 Mpps	342 Mpps	342 Mpps	595 Mpps	342 Mpps	506 Mpps	684 Mpps	810 Mpps	506 Mpps	2,800 Mpps
VLANs	1,000	256	1,000	256	1,000	256	256	1,000	1,000	1,000	1,000	1,000	1,000	1,000	Not specified	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	Not specified	Not specified	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
MAC table	2,000	4,000	2,000	4,000	8,000	4,000	4,000	8,000	8,000	16,000	16,000	8,000	16,000	32,000	Not specified	8,000	8,000	8,000	16,000	16,000	16,000	8,000	16,000	16,000	16,000	16,000	32,000	32,000	32,000	16,000	32,000	32,000	32,000	32,000	32,000	32,000	Not specified	Not specified	16,000	32,000	32,000	128,000	32,000	32,000	32,000	32,000	32,000	32,000	32,000	32,000	128,000
Features
Layer 3 routing	No	No	No	No	No	No	No	No	No	Yes	No	No	Yes	Yes	Not specified	No	No	No	No	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
STP and RSTP	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Loop protection	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
IGMP snooping	No	No	No	No	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
802.1X	No	No	No	No	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No
IP-based ACLs	No	No	No	No	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
DHCP snooping	No	No	No	No	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Link aggregation (LACP)	No	No	No	No	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Not specified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Stacking	No	No	No	No	No	No	No	No	No	No	No	No	No	No	Not specified	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	Yes	No	No	Yes	Yes	No	No	Yes	No
MC-LAG	No	No	No	No	No	No	No	No	No	No	No	No	No	No	Not specified	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	Yes	No	No	No	No	No	No	No	No	Yes
Pro AV profiles	No	No	No	No	No	No	No	No	No	No	No	No	No	Yes	Not specified	No	No	No	No	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	Yes	Yes	No	Yes	No	No	No	Yes	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No
Etherlighting	No	No	No	No	No	No	No	No	No	No	No	No	No	Yes	Not specified	No	No	No	No	No	No	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No	No	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Power and redundancy
Power supply	USB-C (adapter included) PoE in (PoE)	USB-C (adapter included) PoE in (PoE)	PoE in (PoE++)	Power adapter (adapter sold separately) PoE in (PoE++)	Power adapter (adapter included)	USB-C (adapter included) PoE in (PoE+)	Power adapter (adapter sold separately) PoE in (PoE+++)	Power cord (C13)	DC terminal block	Power cord (C13)	USB-C (adapter included) PoE in (PoE+)	DC terminal block	Power cord (C13)	Power adapter (adapter included)	Not specified	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	USB-C (adapter included)	Power adapter (adapter included)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)	Power cord (C13)
Redundant power	–	–	–	–	–	–	–	–	Two built-in power inputs	–	–	Two built-in power inputs	–	–	Not specified	–	–	–	–	–	Backup power via UniFi Power Backup (sold separately)	Battery backup	Backup power via UniFi Power Backup (sold separately)	–	–	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Two built-in power inputs	Two built-in power inputs	–	Backup power via UniFi Power Backup (sold separately)	Backup power via UniFi Power Backup (sold separately)	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies	Two hot-swappable power supplies
Hot-swappable power supplies	–	–	–	–	–	–	–	–	–	–	–	–	–	–	Not specified	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	2 × 550 W	2 × 550 W	2 × 600 W 1,200 W: UACC-PSU-54V-1200W-EU	2 × 150 W	2 × 600 W 1,200 W: UACC-PSU-54V-1200W-EU	2 × 550 W	2 × 1,200 W	2 × 1,200 W	2 × 1,200 W	2 × 550 W
Max power draw	2.5 W	5 W	5 W (excl. PoE)	9 W (excl. PoE)	8 W (excl. PoE)	14 W	14 W (excl. PoE)	15 W (excl. PoE)	12 W	30 W (excl. PoE)	25 W	12 W (excl. PoE)	30 W (excl. PoE)	61 W (excl. PoE)	Not specified	25 W	18 W (excl. PoE)	25 W (excl. PoE)	40 W	45 W (excl. PoE)	50 W (excl. PoE)	50 W (excl. PoE)	60 W (excl. PoE)	25 W	25 W (excl. PoE)	50 W	60 W	100 W	65 W (excl. PoE)	50 W (excl. PoE)	60 W (excl. PoE)	150 W	100 W (excl. PoE)	150 W (excl. PoE)	250 W	200 W (excl. PoE)	13 W	18 W	36 W	100 W	200 W	340 W	150 W	150 W (excl. PoE)	150 W	150 W (excl. PoE)	250 W	250 W (excl. PoE)	150 W (excl. PoE)	250 W (excl. PoE)	360 W
Hardware
Display	–	–	–	–	–	–	–	–	–	1.3" touchscreen	–	–	1.3" touchscreen	–	Not specified	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	–	–	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen	1.3" touchscreen
Cooling	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fan* (From a community source)	Fanless	Fanless	Fan* (From a community source)	Fan* (From a community source)	Fanless	Fanless	Fanless	Fanless	Fanless	Fanless	Fan* (From a community source)	Not specified	Fan* (From a community source)	Fanless	Fanless	Fan* (From a community source)	Fan	Fan* (From a community source)	Fan	Fan* (From a community source)	Fan	Fan	Fan	Fan	Fan	Fan	Fanless	Fanless	Fanless	Fan	Fan	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans	Hot-swappable fans
Physical
Mounting	Desktop	Desktop	Desktop, Wall, Pole	Desktop, Wall, Magnetic	Desktop, Wall	Desktop, Wall, DIN rail, Magnetic	Desktop, Wall, DIN rail, Magnetic	Desktop, Wall	Wall, DIN rail	Desktop, Wall	Desktop, Wall	Wall, DIN rail	Desktop	Desktop, Wall	Not specified	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Desktop, Wall, Rack (1U, rack kit sold separately)	Desktop, Wall, Rack (1U, rack kit sold separately)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)	Rack (1U)
Dimensions	107 × 70 × 21 mm	117.1 × 90 × 21.2 mm	122.5 × 107.1 × 28 mm	203 × 76 × 33 mm	99.6 × 163.7 × 31.7 mm	212.9 × 76 × 33.5 mm	212.9 × 99.4 × 33.5 mm	192 × 185 × 44 mm	139 × 100 × 52 mm	200 × 248 × 44 mm	135 × 185 × 32 mm	139 × 100 × 52 mm	200 × 248 × 44 mm	210.4 × 173.8 × 43.7 mm	Not specified	442 × 200 × 44 mm	442 × 200 × 44 mm	442 × 200 × 44 mm	442 × 285 × 44 mm	442 × 285 × 44 mm	442 × 285 × 44 mm	442 × 480 × 44 mm	442 × 400 × 44 mm	325.1 × 160 × 43.7 mm	325.1 × 160 × 43.7 mm	442 × 325 × 44 mm	442 × 285 × 44 mm	442 × 325 × 44 mm	442.4 × 285 × 44 mm	442 × 325 × 44 mm	442 × 400 × 44 mm	442 × 480 × 44 mm	442.4 × 400 × 44 mm	442 × 480 × 44 mm	442 × 480 × 44 mm	442 × 480 × 44 mm	442.4 × 120 × 43.7 mm	442.4 × 120 × 43.7 mm	442 × 120 × 43.7 mm	442 × 325 × 44 mm	442.4 × 43.7 × 480 mm	442.4 × 43.7 × 496 mm	442.4 × 44 × 496 mm	442.4 × 43.7 × 496 mm	442.4 × 480 × 43.7 mm	442.4 × 44 × 496 mm	442.4 × 44 × 496 mm	442.4 × 43.7 × 496 mm	442.4 × 480 × 43.7 mm	442.4 × 44 × 496 mm	442.4 × 43.7 × 480 mm
Weight	150 g	206 g	230 g	320 g	295 g	395 g	567 g	1.2 kg	870 g	2.1 kg	1.2 kg	910 g	2.4 kg	1.6 kg	Not specified	2.7 kg	2.8 kg	3 kg	3.9 kg	4.5 kg	4.3 kg	9 kg	6.2 kg	1.95 kg	2.1 kg	4.2 kg	4.2 kg	4.8 kg	4.6 kg	5.1 kg	6.2 kg	7.2 kg	6.2 kg	7.9 kg	7.5 kg	8.7 kg	2.2 kg	2.3 kg	2.6 kg	4.6 kg	7.1 kg	9.9 kg	9.6 kg	9.46 kg	8.95 kg	9.2 kg	10.2 kg	9.46 kg	9.85 kg	9.5 kg	9.7 kg
Operating temperature	-5 to 45 °C	-20 to 45 °C	-40 to 55 °C	-30 to 60 °C	-15 to 40 °C	-20 to 45 °C	-20 to 45 °C	-15 to 40 °C	-30 to 70 °C	-5 to 45 °C	-5 to 45 °C	-30 to 70 °C	-5 to 45 °C	-5 to 45 °C	Not specified	-5 to 45 °C	-5 to 40 °C	-5 to 40 °C	-15 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C	-5 to 40 °C
Good to know
Notes	The USB-C power adapter comes only with the single pack, not with the 3- and 5-packs. Can be powered through a PoE input (802.3af/at) but has no PoE output.	Can be powered through a PoE input or the included USB-C adapter but has no PoE output.	Made for both indoor and outdoor use; the USW-Flex-Utility enclosure (sold separately) is for exposed outdoor locations. Pole mounting requires the USW-Flex-Utility accessory.	A PoE input is enough to run the switch, but PoE output needs a PoE+/PoE++ input or an AC adapter. Ubiquiti's PoE budgets apply at 45 °C; at 60 °C the figure is reduced to 161 W (230 V).	The 52 W PoE budget is shared across the four PoE+ ports (up to 30 W per port), so not every port can deliver full power at once. The budget applies with the included 60 W power adapter.	The 10 GbE RJ45 and 10G SFP+ ports are one combo uplink: only one of them can be used at a time. DIN rail and magnetic mounting need accessories sold separately. Ubiquiti lists outdoor installation when the switch is paired with a Flex Utility enclosure, sold separately.	The 10 GbE RJ45 and 10G SFP+ ports are one combo uplink: only one of them can be used at a time. DIN rail and magnetic mounting need accessories sold separately. Ubiquiti lists outdoor installation when the switch is paired with a Flex Utility enclosure, sold separately.	The 45 W PoE budget is shared across the eight PoE+ ports (up to 32 W per port), so not every port can deliver full power at once.	A power supply is not included. The switch runs on 12–60 V DC through a terminal block and has two DC inputs for redundant power. Has a dry contact relay output for connecting external alarms and automation.	The 120 W PoE budget is shared across the eight PoE ports (six PoE+ and two PoE++), so not every port can deliver full power at once.	Can be powered through a PoE+ input or the included 25 W USB-C adapter but has no PoE output. Ubiquiti's datasheet says the switch must not be physically stacked.	A power supply is not included. PoE+/PoE++ output needs 50–57 V DC at the input, and the PoE budget of up to 480 W depends on the supply you connect. Has a dry contact relay output for connecting external alarms and automation.	Ubiquiti classes this model as Vintage: it is no longer manufactured or actively developed but may still be available to buy. It continues to receive critical bug fixes and security updates. Ubiquiti says the switch should not be physically stacked. The 120 W PoE budget is shared across the eight PoE+ ports (up to 32 W per port), so not every port can deliver full power at once.	The 155 W PoE budget is shared across the eight PoE++ ports (up to 60 W per port), so not every port can deliver full power at once. The RJ45 ports run at 10 Gbps and also support 5G, 2.5G, 1G and 100M.	Has a dry contact relay output for connecting external alarms and automation.	Has no PoE output, so access points and cameras need a PoE switch or PoE injectors.	Only eight of the 16 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover eight devices drawing full PoE+ power (up to 32 W per port).	16 of the 24 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover 16 devices drawing full PoE+ power (up to 32 W per port).	Has no PoE output, so access points and cameras need a PoE switch or PoE injectors.	32 of the 48 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover 32 devices drawing full PoE+ power (up to 32 W per port).	The PoE budget is shared between 16 PoE+ ports and eight PoE++ ports (up to 60 W per port). It does not cover full power on all ports at once. The Layer 3 features are a DHCP server, DHCP relay, inter-VLAN routing and static routing.	Has a built-in 368 Wh lithium-ion battery that keeps the PoE ports running during a power outage. An external 48 V DC battery can be connected for longer runtime but is not included. Has two AC outlets (230 V) on the back for devices such as a modem and a gateway. The PoE budget is shared between the four PoE+ ports and the four PoE++ ports (up to 60 W per port). The ninth port is an uplink without PoE.	The PoE budget is shared between 40 PoE+ ports and eight PoE++ ports (up to 60 W per port). It does not cover full power on all ports at once. The Layer 3 features are a DHCP server, DHCP relay, inter-VLAN routing and static routing.	The switch has no PoE output, so access points and cameras need a PoE switch or a PoE injector. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	The 180 W PoE budget is shared across the 16 PoE ports (12 PoE+ and 4 PoE++), so not every port can deliver full power at once. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	The switch has no PoE output, so access points and cameras need a PoE switch or a PoE injector. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	Has no PoE output, so access points and other PoE devices need a PoE switch or a PoE injector.	The switch has no PoE output, so access points and cameras need a PoE switch or a PoE injector. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	The 400 W PoE budget is shared across the 10 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once.	The 400 W PoE budget is shared across the 24 PoE ports (8 PoE+ and 16 PoE++), so not every port can deliver full power at once. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	The 600 W PoE budget is shared across the 24 PoE++ ports, so not every port can deliver full power at once.	Has no PoE output, so access points and other PoE devices need a PoE switch or a PoE injector.	The 720 W PoE budget is shared across the 48 PoE ports (32 PoE+ and 16 PoE++), so not every port can deliver full power at once. The Etherlighting light, which shows link speed and VLAN among other things, is brightest with UniFi Etherlighting patch cables, which are sold separately.	The 720 W PoE budget is shared across the 24 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once.	Has no PoE output, so access points and other PoE devices need a PoE switch or a PoE injector.	The 1,080 W PoE budget (at 200–240 V mains) is shared across the 48 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once.	Shares a single internet connection between two gateways in Shadow Mode high availability: one port goes to the ISP and two to the gateways. Simplifies Shadow Mode when the ISP provides only a single uplink. With more than one ISP, an additional WAN switch is used. Managed in UniFi Network. The separate gigabit port (MGMT) on the back is for management.	Shares a single internet connection between two gateways in Shadow Mode high availability: one port goes to the ISP and two to the gateways. Simplifies Shadow Mode when the ISP provides only a single uplink. With more than one ISP, an additional WAN switch is used. Managed in UniFi Network. The separate gigabit port (MGMT) on the back is for management.	The SFP+ ports also work with 1G modules.	The four SFP28 ports cannot mix speeds at 25G: once one port runs at 25G, the others are limited to 25G too. Mixed speeds work only when all run at 1G or 10G.	The SFP28 ports also work with 10G and 1G modules. Made for 19-inch four-post racks with a post depth of 600–1,066 mm.	MC-LAG requires pairing with a second Enterprise Campus Aggregation. The six 100G (QSFP28) ports do not support breakout cables. A full-depth 1U switch: needs a four-post rack, or a center-mount bracket or cantilever shelf in a two-post rack.	Up to four switches can be stacked, and only switches with the same port count. A link aggregation can span the switches in a stack, with up to eight ports per LAG. Has no PoE output, so access points and other PoE devices need a PoE switch or a PoE injector. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	The 1,050 W PoE budget is shared across the 24 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once. In redundant power mode, where one module can take over for the other, the budget is 450 W. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	Supports PTP time synchronization (IEEE 1588 PTPv2) with hardware timestamping on all Ethernet and QSFP28 ports, as grandmaster, boundary clock or transparent clock. PTPv2 is not supported over aggregated ports. The SMA port takes a GPS signal for grandmaster clock mode. The GNSS antenna (UACC-GNSS-Antenna) is not included and is sold separately. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	Up to four switches can be stacked, and only switches with the same port count. A link aggregation can span the switches in a stack, with up to eight ports per LAG. The 1,050 W PoE budget is shared across the 24 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once. In redundant power mode, where one module can take over for the other, the budget is 450 W. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	Up to four switches can be stacked, and only switches with the same port count. A link aggregation can span the switches in a stack, with up to eight ports per LAG. Has no PoE output, so access points and other PoE devices need a PoE switch or a PoE injector. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	The 2,150 W PoE budget (at 200–240 V mains) is shared across the 48 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once. In redundant power mode, where one module can take over for the other, the budget is 950 W. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	Supports PTP time synchronization (IEEE 1588 PTPv2) with hardware timestamping on all Ethernet and QSFP28 ports, as grandmaster, boundary clock or transparent clock. PTPv2 is not supported over aggregated ports. The SMA port takes a GPS signal for grandmaster clock mode. The GNSS antenna (UACC-GNSS-Antenna) is not included and is sold separately. The 2,150 W PoE budget (at 200–240 V mains) is shared across the 24 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once. In redundant power mode, where one module can take over for the other, the budget is 1,050 W.	Up to four switches can be stacked, and only switches with the same port count. A link aggregation can span the switches in a stack, with up to eight ports per LAG. The 2,150 W PoE budget (at 200–240 V mains) is shared across the 48 PoE+++ ports (up to 90 W per port), so not every port can deliver full power at once. In redundant power mode, where one module can take over for the other, the budget is 950 W. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.	MC-LAG requires pairing with a second Enterprise Campus Core switch. The QSFP28 ports (100G/40G) do not support breakout cables. For four-post racks. Two-post racks need a center-mount bracket or cantilever shelf for optimal support.
