Switches · Standard
Switch 24
USW-24€200 excl. VAT

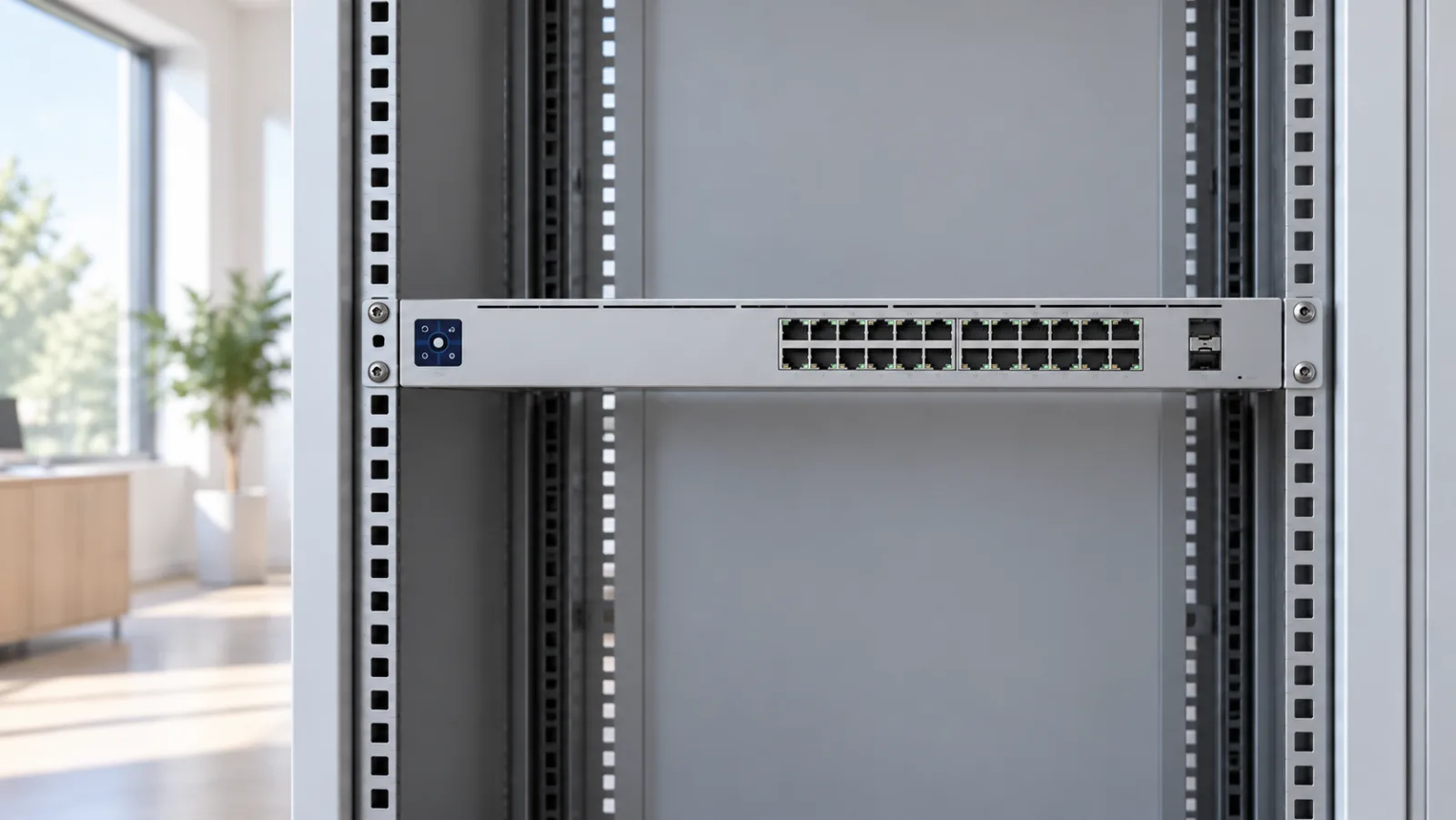

Switch 24 is a fanless Layer 2 switch for a 19-inch rack, without PoE, with SFP ports and a touchscreen on the front.
Who it suits
Suits offices and smaller businesses with a rack or network cabinet, where many fixed workstations, printers, servers and NAS devices are connected by cable. Without a fan it is quiet, which suits a rack in a work room. It is a Layer 2 switch, so routing and the firewall come from the gateway.
At a glance
- Number of ports
- 26
- Function level
- Fully managed
- Mounting
- Rack (1U)
Good to know
- Has no PoE output, so access points and cameras need a PoE switch or PoE injectors.
Price from Ubiquiti’s EU store, 2026-10-16
In the box
- Switch 24
- Power cable
- 2 × Rack ears
- Cage nuts
Specifications
| Overview | |
|---|---|
| Price (excl. VAT) | €200 |
| Function level | Fully managed |
| Ports and PoE | |
| Ports | 24 × 1 Gbps RJ45 2 × 1 Gbps SFP |
| Number of ports | 26 |
| PoE ports | – |
| Strongest PoE | – |
| PoE budget | – |
| Performance | |
| Switching capacity | 52 Gbps |
| Forwarding rate | 39 Mpps |
| VLANs | 1,000 |
| MAC table | 8,000 |
| Features | |
| Layer 3 routing | No |
| STP and RSTP | Yes |
| Loop protection | Yes |
| IGMP snooping | Yes |
| 802.1X | Yes |
| IP-based ACLs | Yes |
| DHCP snooping | Yes |
| Link aggregation (LACP) | Yes |
| Stacking | No |
| MC-LAG | No |
| Pro AV profiles | No |
| Etherlighting | No |
| Power and redundancy | |
| Power supply | Power cord (C13) |
| Redundant power | – |
| Hot-swappable power supplies | – |
| Max power draw | 25 W |
| Hardware | |
| Display | 1.3" touchscreen |
| Cooling | Fanless |
| Physical | |
| Mounting | Rack (1U) |
| Dimensions | 442 × 200 × 44 mm |
| Weight | 2.7 kg |
| Operating temperature | -5 to 45 °C |
Prices in euros excluding VAT from Ubiquiti’s EU store, fetched 2026-10-16. The store may add a temporary surcharge for memory costs of about 10%.
“Not specified” means that neither Ubiquiti nor the sources we use state the value. “–” means it does not apply to the product.
Sources
Specifications come from Ubiquiti’s technical datasheets, the price from Ubiquiti’s EU store and routing throughput from ui.com.
Show all sources (2)
Details such as chipset, RAM type and cooling come from these sources:
Ubiquiti
- eu.store.ui.com – In the box; Cooling
- techspecs.ui.com – notes
Compare with other Switches
Showing 5 of 51 products34 of 34 featuresSwipe sideways to see more models.
| Feature | Switch 24Standard |  Switch 16 PoEStandard |  Switch 24 PoEStandard |  Switch 48Standard |  Switch 48 PoEStandard |
|---|---|---|---|---|---|
| Overview | |||||
| Price (excl. VAT) | €200 | €269 | €340 | €359 | €530 |
| Function level | Fully managed | Fully managed | Fully managed | Fully managed | Fully managed |
| Ports and PoE | |||||
| Ports | 24 × 1 Gbps RJ45 2 × 1 Gbps SFP | 8 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 2 × 1 Gbps SFP | 16 × 1 Gbps RJ45 (PoE+) 8 × 1 Gbps RJ45 2 × 1 Gbps SFP | 48 × 1 Gbps RJ45 4 × 1 Gbps SFP | 32 × 1 Gbps RJ45 (PoE+) 16 × 1 Gbps RJ45 4 × 1 Gbps SFP |
| Number of ports | 26 | 18 | 26 | 52 | 52 |
| PoE ports | – | 8 | 16 | – | 32 |
| Strongest PoE | – | PoE+ | PoE+ | – | PoE+ |
| PoE budget | – | 42 W | 95 W | – | 195 W |
| Performance | |||||
| Switching capacity | 52 Gbps | 36 Gbps | 52 Gbps | 104 Gbps | 104 Gbps |
| Forwarding rate | 39 Mpps | 27 Mpps | 39 Mpps | 77 Mpps | 77 Mpps |
| VLANs | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| MAC table | 8,000 | 8,000 | 8,000 | 16,000 | 16,000 |
| Features | |||||
| Layer 3 routing | No | No | No | No | No |
| STP and RSTP | Yes | Yes | Yes | Yes | Yes |
| Loop protection | Yes | Yes | Yes | Yes | Yes |
| IGMP snooping | Yes | Yes | Yes | Yes | Yes |
| 802.1X | Yes | Yes | Yes | Yes | Yes |
| IP-based ACLs | Yes | Yes | Yes | Yes | Yes |
| DHCP snooping | Yes | Yes | Yes | Yes | Yes |
| Link aggregation (LACP) | Yes | Yes | Yes | Yes | Yes |
| Stacking | No | No | No | No | No |
| MC-LAG | No | No | No | No | No |
| Pro AV profiles | No | No | No | No | No |
| Etherlighting | No | No | No | No | No |
| Power and redundancy | |||||
| Power supply | Power cord (C13) | Power cord (C13) | Power cord (C13) | Power cord (C13) | Power cord (C13) |
| Redundant power | – | – | – | – | – |
| Hot-swappable power supplies | – | – | – | – | – |
| Max power draw | 25 W | 18 W (excl. PoE) | 25 W (excl. PoE) | 40 W | 45 W (excl. PoE) |
| Hardware | |||||
| Display | 1.3" touchscreen | 1.3" touchscreen | 1.3" touchscreen | 1.3" touchscreen | 1.3" touchscreen |
| Cooling | Fanless | Fanless | Fanless | Fanless | Fanless |
| Physical | |||||
| Mounting | Rack (1U) | Rack (1U) | Rack (1U) | Rack (1U) | Rack (1U) |
| Dimensions | 442 × 200 × 44 mm | 442 × 200 × 44 mm | 442 × 200 × 44 mm | 442 × 285 × 44 mm | 442 × 285 × 44 mm |
| Weight | 2.7 kg | 2.8 kg | 3 kg | 3.9 kg | 4.5 kg |
| Operating temperature | -5 to 45 °C | -5 to 40 °C | -5 to 40 °C | -15 to 40 °C | -5 to 40 °C |
| Good to know | |||||
| Notes | Has no PoE output, so access points and cameras need a PoE switch or PoE injectors. | Only eight of the 16 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover eight devices drawing full PoE+ power (up to 32 W per port). | 16 of the 24 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover 16 devices drawing full PoE+ power (up to 32 W per port). | Has no PoE output, so access points and cameras need a PoE switch or PoE injectors. | 32 of the 48 copper ports provide PoE+, and the PoE budget is shared between them. It does not cover 32 devices drawing full PoE+ power (up to 32 W per port). |
Prices in euros excluding VAT from Ubiquiti’s EU store, fetched 2026-10-16. The store may add a temporary surcharge for memory costs of about 10%.
“Not specified” means that neither Ubiquiti nor the sources we use state the value. “–” means it does not apply to the product.
