Switch Hi-Capacity Aggregation

USW-Pro-Aggregation€809 excl. VATSold out

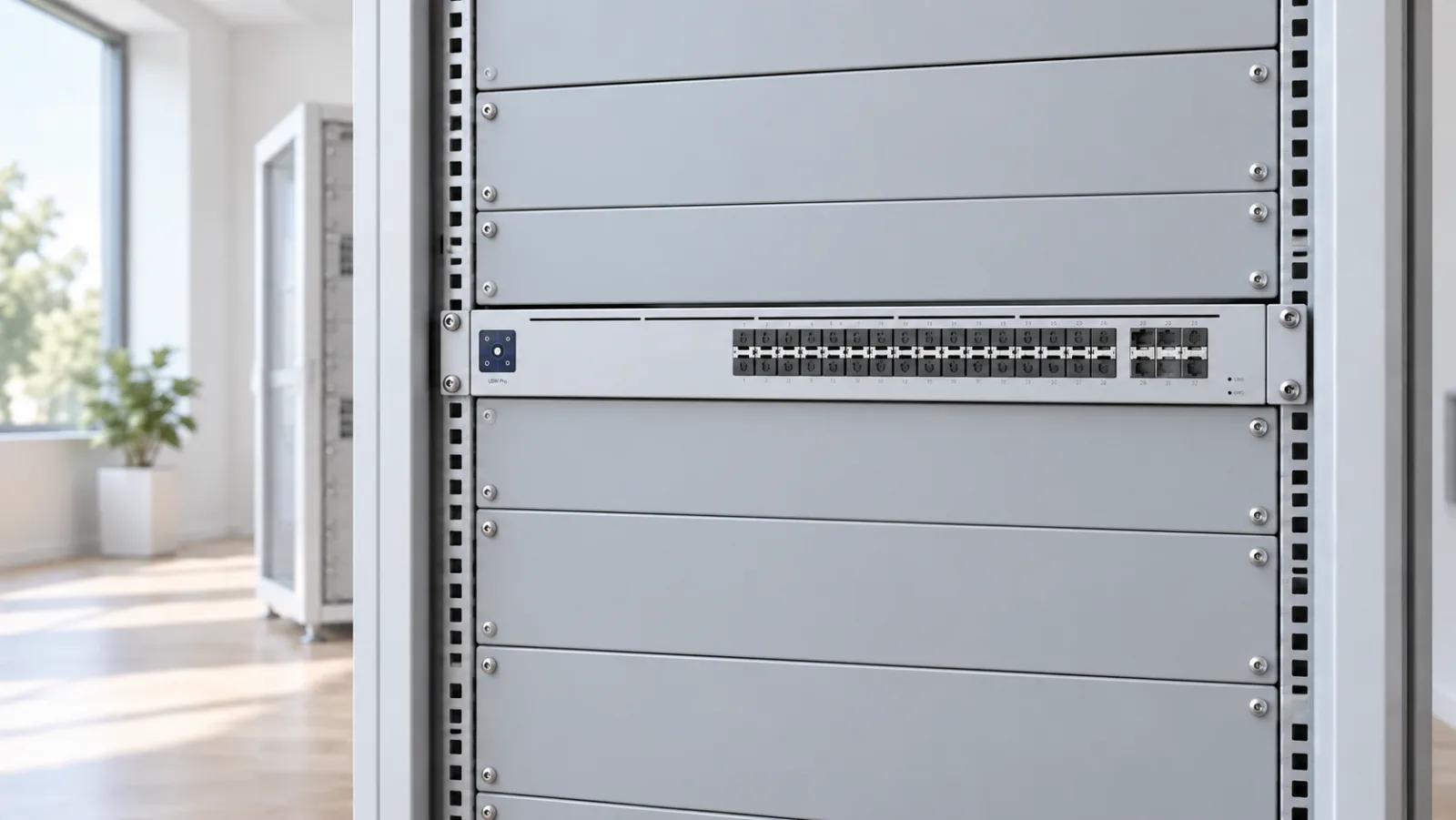

Switch Hi-Capacity Aggregation in a bright setting (illustration)
Illustration, created from Ubiquiti’s product images.

Switch Hi-Capacity Aggregation is a UniFi switch for 19-inch racks with SFP+ and SFP28 ports and Layer 3 routing, for gathering the traffic from many switches.

Who it suits

Suits organisations with several floors or network cabinets and an equipment room, where many switches and fiber-connected servers need to be brought together in one place. Layer 3 routing lets traffic between VLANs be handled in the switch itself instead of passing through the gateway. It is fan-cooled and belongs in an equipment room or cabinet, and it gives no power to devices, so access points and cameras connect to PoE switches further out.

At a glance

Switch Hi-Capacity Aggregation
Number of ports
32
Function level
Layer 3
Mounting
Rack (1U)
Redundant power
Backup power via UniFi Power Backup (sold separately)

Good to know

  • The four SFP28 ports cannot mix speeds at 25G: once one port runs at 25G, the others are limited to 25G too. Mixed speeds work only when all run at 1G or 10G.

Price from Ubiquiti’s EU store, 2026-10-16

In the box

  • Switch Hi-Capacity Aggregation
  • Power cable
  • Rack ears
  • Cage nuts
Image from Ubiquiti’s EU store. The plug on the power cable may look different in the picture than in the European box.

Specifications

Specifications: Switch Hi-Capacity Aggregation
Overview
Price (excl. VAT)€809
Function levelLayer 3
Ports and PoE
Ports28 × 10 Gbps SFP+
4 × 25 Gbps SFP28
Number of ports32
PoE ports–
Strongest PoE–
PoE budget–
Performance
Switching capacity760 Gbps
Forwarding rate565 Mpps
VLANs1,000
MAC table32,000
Features
Layer 3 routingYes
STP and RSTPYes
Loop protectionYes
IGMP snoopingYes
802.1XYes
IP-based ACLsYes
DHCP snoopingYes
Link aggregation (LACP)Yes
StackingNo
MC-LAGNo
Pro AV profilesYes
EtherlightingNo
Power and redundancy
Power supplyPower cord (C13)
Redundant powerBackup power via UniFi Power Backup (sold separately)
Hot-swappable power supplies–
Max power draw100 W
Hardware
Display1.3" touchscreen
CoolingFan
Physical
MountingRack (1U)
Dimensions442 × 325 × 44 mm
Weight4.6 kg
Operating temperature-5 to 40 °C

Prices in euros excluding VAT from Ubiquiti’s EU store, fetched 2026-10-16. The store may add a temporary surcharge for memory costs of about 10%.

“Not specified” means that neither Ubiquiti nor the sources we use state the value. “–” means it does not apply to the product.

Sources

Specifications come from Ubiquiti’s technical datasheets, the price from Ubiquiti’s EU store and routing throughput from ui.com.

Show all sources (2)

Details such as chipset, RAM type and cooling come from these sources:

Ubiquiti

Compare with other Switches

Showing 4 of 51 products34 of 34 featuresSwipe sideways to see more models.

Comparison of UniFi switches
FeatureSwitch Hi-Capacity AggregationAggregationSwitch AggregationAggregationSwitch Pro XG AggregationAggregationSwitch Enterprise Campus AggregationAggregation
Overview
Price (excl. VAT)€809€240€2,249€3,599
Function levelLayer 3Fully managedLayer 3Layer 3
Ports and PoE
Ports28 × 10 Gbps SFP+
4 × 25 Gbps SFP28		8 × 10 Gbps SFP+32 × 25 Gbps SFP2848 × 25 Gbps SFP28
6 × 100 Gbps QSFP28
Number of ports3283254
PoE ports––––
Strongest PoE––––
PoE budget––––
Performance
Switching capacity760 Gbps160 Gbps1,600 Gbps3,600 Gbps
Forwarding rate565 Mpps119 Mpps1,200 Mpps2,400 Mpps
VLANs1,0001,0001,0001,000
MAC table32,00016,00032,000128,000
Features
Layer 3 routingYesNoYesYes
STP and RSTPYesYesYesYes
Loop protectionYesYesYesYes
IGMP snoopingYesYesYesYes
802.1XYesYesYesNo
IP-based ACLsYesYesYesYes
DHCP snoopingYesYesYesYes
Link aggregation (LACP)YesYesYesYes
StackingNoNoNoNo
MC-LAGNoNoNoYes
Pro AV profilesYesNoYesNo
EtherlightingNoNoYesYes
Power and redundancy
Power supplyPower cord (C13)Power cord (C13)Power cord (C13)Power cord (C13)
Redundant powerBackup power via UniFi Power Backup (sold separately)–Backup power via UniFi Power Backup (sold separately)Two hot-swappable power supplies
Hot-swappable power supplies–––2 × 550 W
Max power draw100 W36 W200 W340 W
Hardware
Display1.3" touchscreen1.3" touchscreen1.3" touchscreen1.3" touchscreen
CoolingFanFanlessFanHot-swappable fans
Physical
MountingRack (1U)Rack (1U)Rack (1U)Rack (1U)
Dimensions442 × 325 × 44 mm442 × 120 × 43.7 mm442.4 × 43.7 × 480 mm442.4 × 43.7 × 496 mm
Weight4.6 kg2.6 kg7.1 kg9.9 kg
Operating temperature-5 to 40 °C-5 to 40 °C-5 to 40 °C-5 to 40 °C
Good to know
NotesThe four SFP28 ports cannot mix speeds at 25G: once one port runs at 25G, the others are limited to 25G too. Mixed speeds work only when all run at 1G or 10G.The SFP+ ports also work with 1G modules.The SFP28 ports also work with 10G and 1G modules.
Made for 19-inch four-post racks with a post depth of 600–1,066 mm.		MC-LAG requires pairing with a second Enterprise Campus Aggregation.
The six 100G (QSFP28) ports do not support breakout cables.
A full-depth 1U switch: needs a four-post rack, or a center-mount bracket or cantilever shelf in a two-post rack.

Prices in euros excluding VAT from Ubiquiti’s EU store, fetched 2026-10-16. The store may add a temporary surcharge for memory costs of about 10%.

“Not specified” means that neither Ubiquiti nor the sources we use state the value. “–” means it does not apply to the product.
